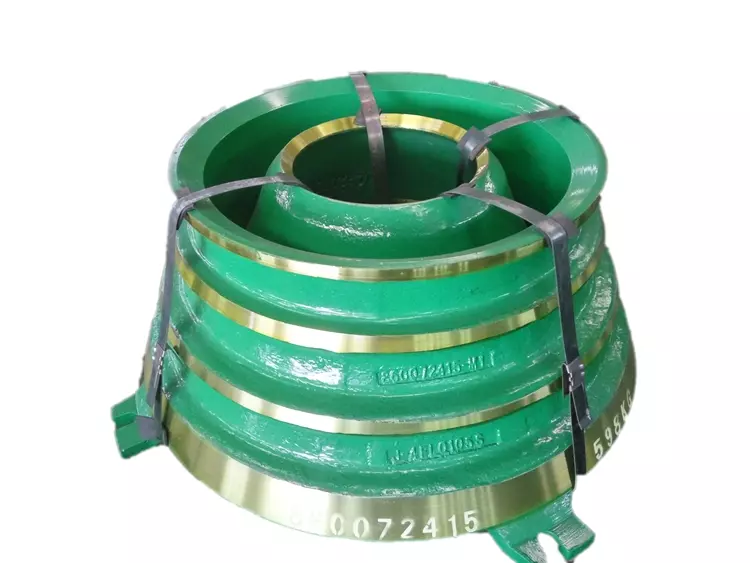

CH440 Cone Crusher Liners

Sandvik CH440 is suitable for a high-capacity secondary application or a high-reduction tertiary or pebble-crushing application, and it can be matched to changes in production through the selection of crushing chambers and an eccentric throw. This flexibility means that it’s suitable for a wide range of applications. If you need a replacement cone for your crushing machine that can withstand the toughest conditions, then you need Hunan JY Casting’s manganese cones. Our replacement cones feature manganese in three grades depending on the crushing conditions encountered – 14 percent, 18-19 percent, and 21-23 percent. Samscreen’s replacement cones offer excellent wear life and fit and go through a rigorous quality control process.

Hunan JY Casting’s cone crusher mantles and concaves are designed for any demanding crushing environment for stationary and mobile crushing processes in surface and underground operations and provide reliable and consistent production without unexpected downtime. Our service specialists develop solutions for wear parts according to the individual requirements of your plants and components. They focus especially on innovative solutions aimed at reducing downtimes and at improving plant performance. For this purpose, our expert team assesses your individual production processes and develops a suitable wear part solution for the relevant application, based on OEM expertise and materials engineering.

Benefits

  • Proprietary alloys offer increased wear resistance, impact strength, and durability;
  • Decreased downtimes and increased cost savings;
  • Better fit for quick and easy replacement;
  • Design improvements increase crusher efficiency and prevent premature erosion;
  • Extensive offering of cone crusher wear parts for all major models;
  • Quick delivery – Large inventory of crusher wear parts in stock for reliable deliveries.

All Hunan JY Casting compatible parts to suit Sandvik CH440 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

CH440 Cone Crusher Liners

CH440 Cone Crusher Liners

Aftermarket Cone Crusher Parts For CH440 & H4800

We are the best CH440(H4800) cone crusher liners manufacturer in China. We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
Please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on applications. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

CH440 (H4800) Cone Crusher Liners
Mn14 Mn18 Mn22
Concave
Extra Coarse Top Grip Cavity 452.3027-001 452.3027-002 452.3027-003
Coarse Cavity 442.8421-01 442.8421-02 442.8421-03
Medium Coarse Cavity 442.8420-01 442.8420-02 442.8420-03
Medium Cavity 442.8419-01 442.8419-02 442.8419-03
Medium Fine Cavity 442.8418-01 442.8418-02 442.8418-03
Fine Cavity 442.8417-01 442.8417-02 442.8417-03
Extra Fine Cavity 442.8416-01 442.8416-02 442.8416-03
Mantle
A 442.7225-01 442.7225-02 442.7224-03
B 442.7230-01 442.7230-02 442.7230-03
HC 442.9073-01 442.9073-02 442.9073-03
FF (A) 452.5271-001 452.5271-002 452.5271-003
FF (B) 452.6063-001 452.6063-002 452.60603-003

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
