Premium CH540 Cone Crusher Liners

Sandvik CH540 cone crusher is characterized by the large intake capability and the high capacity in relation to size, proving to be a versatile and efficient option for many applications. What’s more, we manufacture our cones to your spec within one week of receipt of an order, so you’ll get what you need fast with minimal downtime. Not to mention, we stock a large number of replacement cone castings for most crushing equipment – which means we’ll likely be able to get your order to you – fast.

Hunan JY Casting’s cone crusher wear parts give you: Custom configuration ensures consistent production Long-lasting manganese steel and durable parts increase crusher uptime Precise fitting distributes stresses across the frame for less wear and tear on the equipment To achieve cost efficiency, long service life, and safety, we use the highest quality materials to make our crusher wear parts. With our strategically located distribution centers around the world, you can be sure that the right wear parts are available when and where you need them.

Benefits

  • Custom profiles to suit the application;
  • Retains feed opening through the wear life;
  • Balanced mantle and bowl liner wear;
  • Precision machined to optimal fit.

All Hunan JY Casting compatible parts to suit Sandvik CH540 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

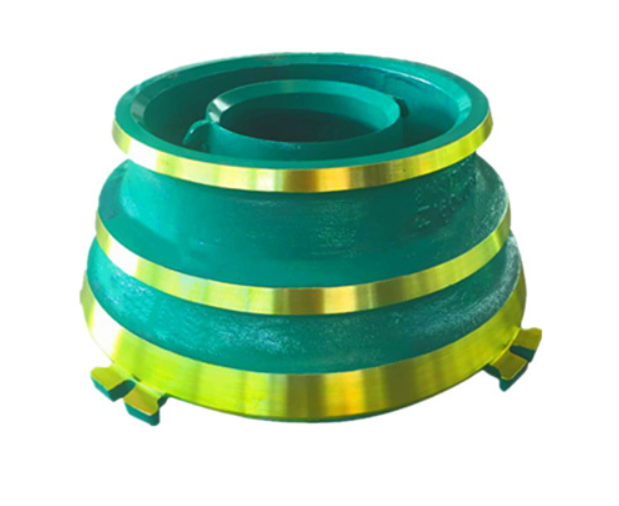

CH540 Cone Crusher Liners

CH540 Cone Crusher Liners

Aftermarket Cone Crusher Liners For CH540

We are the best CH540 cone crusher liners manufacturer in China. We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
Please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on applications. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

CH540 Cone Crusher Liners
Mn14 Mn18 Mn22
Concave
Extra Coarse Top Grip Cavity 452.8358-001 452.8358-002 452.8358-003
Coarse Cavity 452.8512-001 452.8512-002 452.8512-003
Medium Cavity 452.8513-001 452.8513-002 452.8513-003
Fine Cavity 452.8339-001 452.8339-002 452.8339-003
Extra Fine Cavity 452.8511-001 452.8511-002 452.8511-003
Mantle
A 452.8432-001 452.8432-002 452.8432-003
B 452.8338-001 452.8338-002 452.8338-003
EF 452.8510-001 452.8510-002 452.8510-003
FF 452.9030-001 452.9030-002 452.9030-003

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
