Premium CH660 Cone Crusher Liners

Sandvik Ch660 cone crusher is characterized by the large intake capability and the high capacity in relation to size. The adjustable throw gives the equipment real versatility, allowing it to handle a wide range of applications efficiently and effectively. If you need a replacement cone for your crushing machine that can withstand the toughest conditions, then you need Hunan JY Casting’s manganese cones. Our replacement cones feature manganese in three grades depending on the crushing conditions encountered – 14 percent, 18-19 percent, and 21-23 percent.

Hunan JY Casting’s replacement cones offer excellent wear life and fit and go through a rigorous quality control process. Hunan JY Casting cone crusher parts are designed to improve efficiency and reduce costs by extending wear life and minimizing downtime. We offer high-quality replacement wear parts for cone crushers, including bowls, mantles, torch rings, distributor caps, and crusher backing. Our success comes from over 30 years of foundry casting experience matched with direct relationships with some of the largest hard-wearing mine and quarry sites to develop a range of superior performing wear liners and products. Not only is our quality of product superior in performance providing our customers with the benefits of extended wear life and decrease in downtime.


  • Proprietary alloys offer increased toughness and durability;
  • Better fit for quick and easy replacement;
  • Design improvements increase crusher efficiency and prevent premature erosion;
  • Tested for longest usable wear life;
  • Large inventory of crusher wear parts in stock for immediate deliveries;
  • Less downtime for cost savings.

All Hunan JY Casting compatible parts to suit Sandvik CH660 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

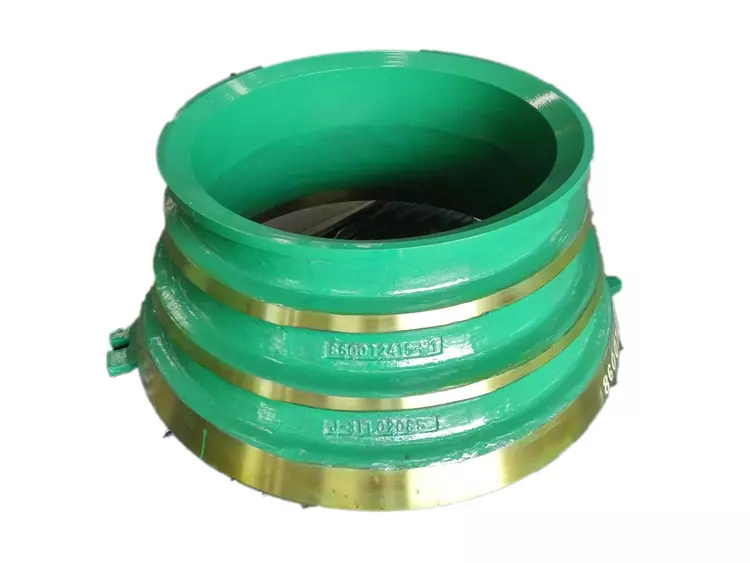

CH660 Cone Crusher Liners

CH660 Cone Crusher Liners

Aftermarket Cone Crusher Liners For CH660

We are the best CH660 cone crusher liners manufacturer in China. We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
Please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on applications. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

CH660 (H6800) Cone Crusher Liners
Mn14 Mn18 Mn22
Extra Coarse Cavity 442.8813-01 442.8813-02 442.8813-03
CX Cavity 442.9230-01 442.9230-02 442.9230-03
Coarse Cavity 442.8814-01 442.8814-02 442.8814-03
Medium Coarse Cavity 442.8815-01 442.8815-02 442.8815-03
Medium Cavity 442.8816-01 442.8816-02 442.8816-03
Medium Fine Cavity 442.8817-01 442.8817-02 442.8817-03
Fine Cavity 442.8818-01 442.8818-02 442.8818-03
Extra Fine Cavity 452.0832-001 452.0832-002 452.0832-003
Heavy R BG00417468-01 BG00417468-02 BG00417468-03
A 442.8819-01 442.8819-02 442.8819-03
D 442.8821-01 442.8821-02 442.8821-03
B 442.8820-01 442.8820-02 442.8820-03
EF 452.0820-001 452.0820-002 452.0820-003
HC 442.9760-01 442.9760-02 442.9760-03

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
