CS420 Cone Crusher Liners

Premium Aftermarket CS420 Cone Crusher Liners

CS420 (which is also called S2800) cone crusher is a popular cone crusher in the world. Sandvik CS420 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This equipment is suitable for a high-capacity secondary crushing application.

When it comes to CS420 cone crusher liners (concaves and mantles), Hunan JY Casting has focused on manufacturing those wear liners for many years. No matter which material (Mn14, Mn18, Mn22, or other materials), or which cavities (extra coarse, coarse, mantle A or mantle B), Hunan JY Casting is your first choice!

In order to help your site maximize its operational performance, we design CS420 cone crusher liners and wear parts that are tailored specifically with your needs and goals in mind.

In any crushing application, equipment performance is critical to the success of an operation, but when equipment is constantly in need of maintenance, it affects profitability. We understand that to keep your equipment and process running smoothly, it may require an approach that is more in-depth than just choosing a different material grade or cone crusher liner. Hunan JY Casting has the capabilities and equipment knowledge to create the best solution for you and your process by reviewing your entire process and machine setup.

All Hunan JY Casting compatible parts to suit Sandvik CS420 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

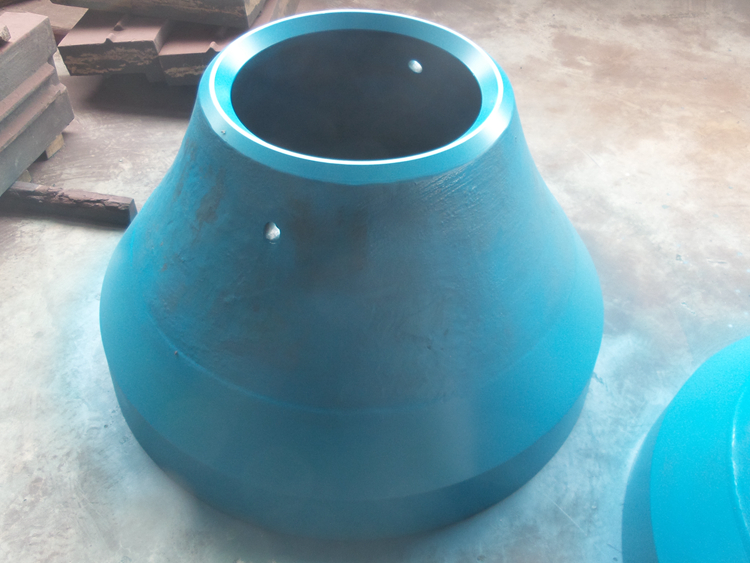

CS420 Concave, 442.8522

CS420 Concave

CS420 Concave, Part Number: JY-442.8522-90

  • JY Casting® replacement part to suit Sandvik CS420 (S2800) cone crusher.
  • Certified compatible with original Sandvik 442.8522-90 specification.
  • Specified by leading global mining and aggregate producers.
  • ISO9001:2018 quality assured parts from China’s leading manufacturer.
  • OEM Part Number: JY-442.8522-90
  • Brand: Hunan JY Casting®
  • Price: On application
  • Condition: New
  • Pattern Status: Stock
  • Weight (kg): Check with our engineers
  • Material: Mn18Cr2

We are the best CS420 cone crusher liners manufacturer in the China.

We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on application. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

Hunan JY Casting manufactures the following cone crusher liners for CS420 (S2800) cone crusher:

CS420 (S2800) Cone Crusher Liners
Material
Concave Mn14 Mn18 Mn22
Extra Coarse Upper 442.8550-00 442.8550-90 /
Extra Coarse Lower 442.8464-00 442.8464-90 /
Coarse Upper 442.7379-00 442.7379-90 /
Coarse Lower 442.8522-00 442.8522-90 442.8522-91
Mantle
A 442.9288-01 442.9288-02 /
B 442.6789-01 442.6789-02 442.6789-03

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
