CS430 Cone Crusher Liners

Premium Aftermarket CS430 Cone Crusher Liners

CS430 (which is also called S3800) cone crusher is a popular cone crusher in the world. Sandvik CS430 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

When it comes to CS430 cone crusher liners (concaves and mantles), Hunan JY Casting has focused on manufacturing those wear liners for many years. No matter which material (Mn14, Mn18, Mn22, or other materials), or which cavities (extra coarse, coarse, mantle A or mantle B), Hunan JY Casting is your first choice!

Hunan JY Casting is a leading supplier of cast, forged, and fabricated wear solutions to OEM and aftermarket crusher operators. We have over 30 years of experience supplying crushing wear parts to the global mining and mineral processing, oil sands, steel, cement, power, and aggregate customers. We supply CS430 crusher liners and wear parts with innovative designs and alloys specifically developed for each application and specific location within each CS430 cone crusher liner. Our experienced sales and engineering departments work closely with the end-user to determine exactly what is required in order to supply innovative engineered custom crusher liners and wear parts for crushing processes that are subjected to severe impact and high abrasion. As an ISO 9001 certified company, strict QA and QC programs are in place at many levels to ensure quality.

All Hunan JY Casting compatible parts to suit Sandvik CS430 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

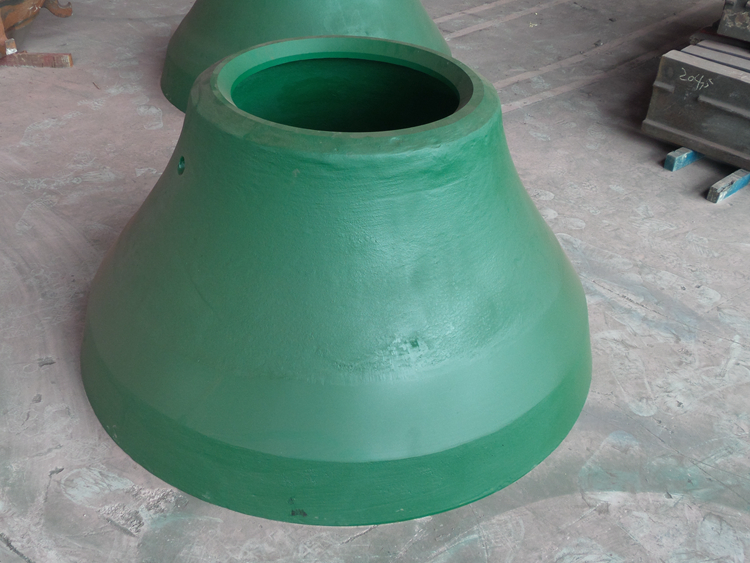

CS430 Concave, 442.8484

CS430 Concave

CS430 Concave, Part Number: JY-442.8484-00

  • JY Casting® replacement part to suit Sandvik CS430 (S3800) cone crusher.
  • Certified compatible with original Sandvik 442.8484-00 specification.
  • Specified by leading global mining and aggregate producers.
  • ISO9001:2018 quality assured parts from China’s leading manufacturer.
  • OEM Part Number: JY-442.8484-00
  • Brand: Hunan JY Casting®
  • Price: On application
  • Condition: New
  • Pattern Status: Stock
  • Weight (kg): N/M
  • Material: Mn14Cr2

We are the best CS430 cone crusher liners manufacturer in the China.

We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on application. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

Hunan JY Casting manufactures the following cone crusher liners for CS430 (S3800) cone crusher:

CS430 (S3800) Cone Crusher Liners
Concave Mn14 Mn18 Mn22
Extra Coarse Cavity (Semi-metallic backing)
Extra Coarse Upper 442.8484-00 442.8484-90 442.8484-91
Extra Coarse Lower 452.7001-901 452.7001-902 452.7001-903
Extra Coarse Second Lower BG00174250 BG00174251 BG00174252
Extra Coarse Cavity (Non-metallic backing)
Extra Coarse Upper 442.8484-00 442.8484-90 442.8484-91
Extra Coarse Lower 442.8477-00 442.8477-90 442.8477-91
Extra Coarse Second Lower 452.1952-901 452.1952-902 452.1952-903
Coarse Cavity (Semi-metallic backing)
Coarse Upper 442.8485-00 442.8485-90 442.8485-91
Coarse Lower 452.7002-901 452.7002-902 452.7002-903
Coarse Second Lower BG00174521 BG00174693 BG00174694
Coarse Cavity (Non-metallic backing)
Coarse Upper 442.8485-00 442.8485-90 442.8485-91
Coarse Lower 442.8478-00 442.8478-90 442.8478-91
Coarse Second Lower 452.1954-901 452.1954-902 452.1954-903
A 442.8470-01 442.8470-02 442.8470-03
B 442.8471-01 442.8471-02 442.8471-03

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
