CS440 Cone Crusher Liners

Premium Aftermarket CS440 Cone Crusher Liners

CS440 (which is also called S4800) cone crusher is a popular cone crusher in the world. Sandvik CS440 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

When it comes to CS440 cone crusher liners (concaves and mantles), Hunan JY Casting has focused on manufacturing those wear liners for many years. No matter which material (Mn14, Mn18, Mn22, or other materials), or which cavities (extra coarse, medium coarse, coarse, mantle A or mantle B), Hunan JY Casting is your first choice!

At Hunan JY Casting, we’re pleased to provide replacement crushing products for numerous crushing situations. Our Cones/ Cone Liners / Concaves / Mantles are manufactured for a wide variety of applications and made to fit in Sandvik CS440 Cone Crusher. When you need Cones/ Cone Liners / Concaves / Mantles for your Sandvik CS440 Cone Crusher, Hunan JY Casting will likely either have it in stock or will be able to manufacture it to your exact specifications. You can trust our engineers to be experienced in the aggregate field and provide you with Cones/ Cone Liners / Concaves / Mantles of the best quality and perfect fit for your Sandvik CS440 Cone Crusher.

Hunan JY Casting will custom design your replacement cone to your exact specifications. And, our replacement cones are designed with the toughest applications in mind, such as the crushing of mid-hard and above mid-hard rocks and ores. With TIC inserts wear surfaces, our cones are heavy-duty built for high productivity, easy adjustment, and lower operational costs.

All Hunan JY Casting compatible parts to suit Sandvik CS440 cone crushers are manufactured and warranted by Hunan JY Casting®, for the avoidance of doubt it is not implied that our branded parts originate from the OEM.

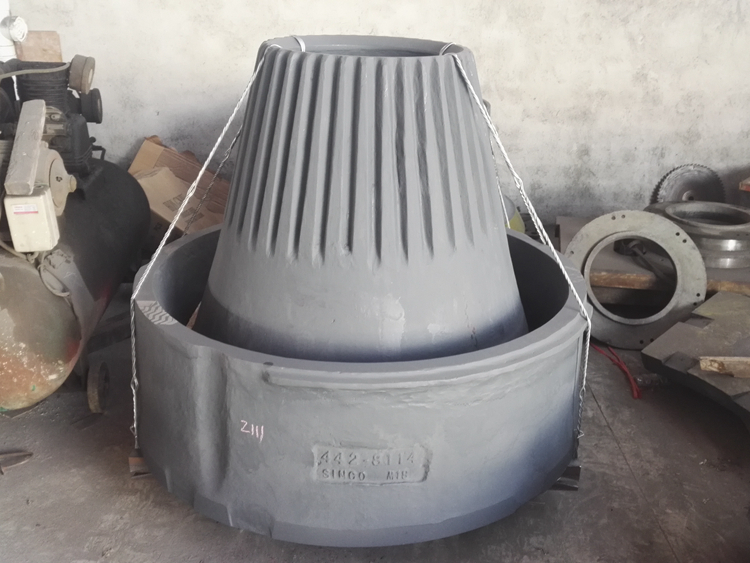

CS440 Lower Concave, 442.8114

CS440 Lower Concave

CS440 Lower Concave, Part Number: JY-442.8114-90

  • JY Casting® replacement part to suit Sandvik CS440 (S4800) cone crusher.
  • Certified compatible with original Sandvik 442.8114-90 specification.
  • Specified by leading global mining and aggregate producers.
  • ISO9001:2018 quality assured parts from China’s leading manufacturer.
  • OEM Part Number: JY-442.8114-90
  • Brand: Hunan JY Casting®
  • Price: On application
  • Condition: New
  • Pattern Status: Stock
  • Weight (kg): 948KG
  • Material: Mn18Cr2

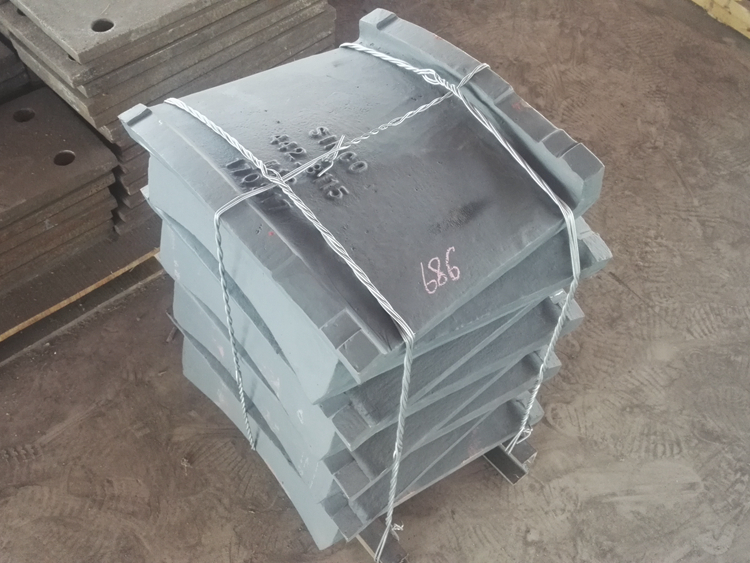

CS440 Upper Concave

CS440 Upper Concave, Part Number: JY-442.8115-90

  • JY Casting® replacement part to suit Sandvik CS440 (S4800) cone crusher.
  • Certified compatible with original Sandvik 442.8115-90 specification.
  • Specified by leading global mining and aggregate producers.
  • ISO9001:2018 quality assured parts from China’s leading manufacturer.
  • OEM Part Number: JY-442.8115-90
  • Brand: Hunan JY Casting®
  • Price: On application
  • Condition: New
  • Pattern Status: Stock
  • Weight (kg): 94KG
  • Material: Mn18Cr2

We are the best CS440 cone crusher liners manufacturer in the China.

We guarantee that this part was expertly crafted in consideration of original factory tolerances and material specifications.
please quote this part number to our parts team if you would like more information about this genuine alternative replacement part over the phone. We provide competitive prices on application. Don’t hesitate to contact the team at Hunan JY Casting® to find out how we deliver results without compromise to leading mining and aggregate businesses globally.

Hunan JY Casting manufactures the following cone crusher liners for CS440 (S4800) cone crusher:

CS440 (S4800) Cone Crusher Liners
Concave Mn14 Mn18 Mn22
Extra Coarse Cavity (Semi-metallic backing)
Extra Coarse Upper 442.8115-00 442.8115-90 442.8115-91
Extra Coarse Lower 452.6264-901 452.6264-902 452.6264-903
Extra Coarse Cavity (Non-metallic backing)
Extra Coarse Upper 442.8115-00 442.8115-90 442.8115-91
Extra Coarse Lower 442.8114-00 442.8114-90 442.8114-91
Extra Coarse Second Lower 452.1955-901 452.1955-902 452.1955-903
Extra Coarse Coarse Lower 452.1544-001 452.1544-002 452.1544-003
Coarse Cavity (Semi-metallic backing)
Coarse Upper 442.8099-00 442.8099-90 442.8099-91
Coarse Lower 452.3821-901 452.3821-902 452.3821-903
Coarse Cavity (Non-metallic backing)
Coarse Upper 442.8099-00 442.8099-90 442.8099-91
Coarse Lower 442.8098-00 442.8098-90 442.8098-91
Coarse Second Lower 452.0945-901 452.0945-902 452.0945-903
Medium Coarse Cavity (Semi-metallic backing)
Upper 452.0474-901 452.0474-902 452.0474-903
Lower 452.6265-901 452.6265-902 452.6265-903
Medium Coarse Cavity (Non-metallic backing)
Upper 452.0474-901 452.0474-902 452.0474-903
Lower 452.0273-901 452.0273-902 452.0273-903
Second Lower 452.1972-901 452.1972-902 452.1972-903
Mantle
A 442.8089-01 442.8089-02 442.8089-03
S 452.0943-001 452.0943-002 452.0943-003
B 442.8070-01 442.8070-02 442.8070-03
BC 452.1545-001 452.1545-002 452.1545-003
