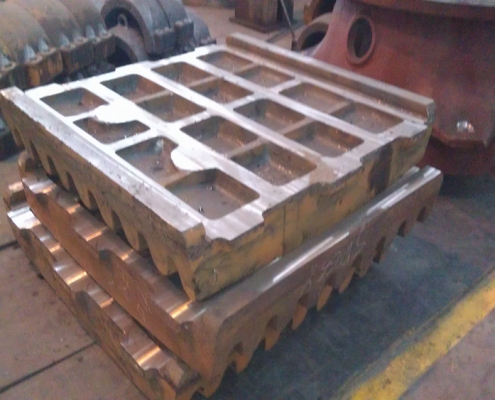

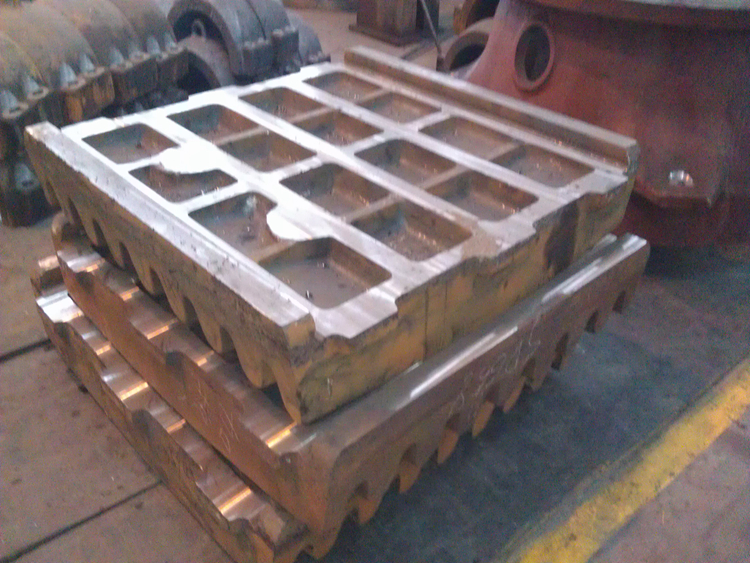

Aftermarket CJ412 Crusher Jaw Plates By Hunan JY Casting

CJ412 (JM1208) single-toggle jaw crusher is engineered for the toughest applications thanks to its heavy-duty design. Characterized by an attention to detail in its design and manufacture, this machine is an excellent choice when you need high production and low total cost.

When it comes to CJ412 crusher jaw plates, Hunan JY Casting manufactures those parts for mining, quarrying, and cement industry. Our aftermarket replacement parts 100% match the original parts. On the other hand, our engineers manufacture those parts based on customers’ working conditions. On this way, our new design parts have a better span life.

Hunan JY Casting supplies the following material for CJ412 jaw plates:

  • Manganese steel, which includes Mn14, Mn18, and Mn22
  • TIC inserts+manganese steel
  • Modified manganese steel

Hunan JY Casting has the following patterns for CJ412 jaw plates:

Tooth Types CORRUGATED WIDE TEETH SHARP TEETH  COARSE CORRUGATED HEAVY DUTY HD ULTRA-THICK
Mn14 Fixed jaw plate JY-400.0407-001 JY-400.0411-001  JY-402.4744-01  JY-400.0425-001  JY-400.0413-001 JY-400.0413-001
Swing jaw plate JY-400.0408-001 JY-400.0411-001 JY-402.4745-01  JY-400.0420-001 JY-400.0412-001 JY-400.0420-001
Mn18 Fixed jaw plate JY-400.0407-002 JY-400.0411-002  JY-402.4744-02  JY-400.0425-002 JY-400.0413-002 JY-400.0413-002
Swing jaw plate JY-400.0408-002 JY-400.0411-002  JY-402.4745-02  JY-400.0420-002 JY-400.0412-002 JY-400.0420-002
Upper plate JY-10-314-262-000
 Lower plate  JY-10-314-263-000

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
