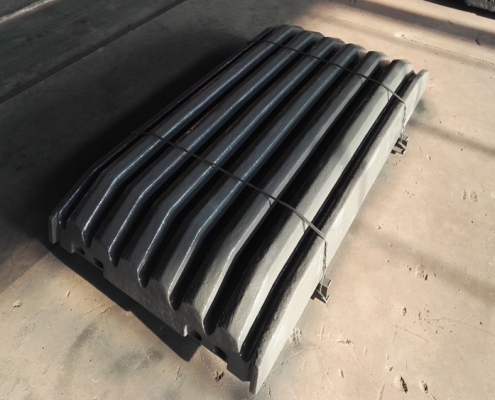

Aftermarket CJ612 Crusher Jaw Plates By Hunan JY Casting

When it comes to CJ612 (JM1211) crusher jaw plates, Hunan JY Casting manufacture aftermarket replacement parts for CJ612 jaw crusher. Based on customers’ drawings and sample products, our aftermarket parts 100% match the original parts; Except for standard manganese steel, our engineers also develop some new materials for different working conditions.

Hunan JY Casting supplies the following material for CJ612  jaw plates:

  • Manganese steel, which includes Mn14, Mn18, and Mn22
  • TIC inserts+manganese steel
  • Modified manganese steel

Hunan JY Casting has the following patterns for CJ612 jaw plates:


Tooth Types WIDE WAVE  SHARP TEETH  COARSE CORRUGATED HEAVY DUTY HD ULTRA-THICK
Mn14 Fixed jaw plate  JY-400.0440-001 JY-402.4747-01  JY-400.2266-001  JY-400.0426-001 JY-400.0426-001
Fixed middle jaw plate JY-400.0442-001 N.A N.A JY-400.0427-001 JY-400.0427-001
Swing jaw plate  JY-400.0438-001 JY-402.4748-01 JY-400.0443-001 JY-400.0423-001 JY-400.0443 -001
Swing middle jaw plate  JY-400.0439-001 N.A N.A  JY-400.0424-001 N.A
Mn18 Fixed jaw plate  JY-400.0440-002  402.4747-02  JY-400.2266-002 JY-400.0426-002 JY-400.0426-002
Fixed middle jaw plate JY-400.0442-002 N.A N.A JY-400.0427-002 JY-400.0427-002
Swing jaw plate  JY-400.0438-002 402.4748-02  JY-400.0443-002  JY-400.0423-002 JY-400.0443 -002
Swing middle jaw plate  400.0439-002 N.A  N.A  400.0424-002 N.A
Upper plate JY-402.4239-01
 Lower plate  JY-402.4635-01
