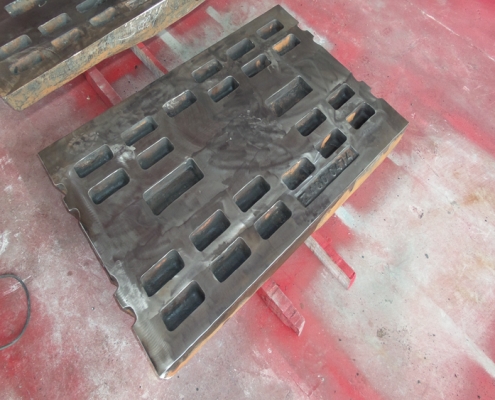

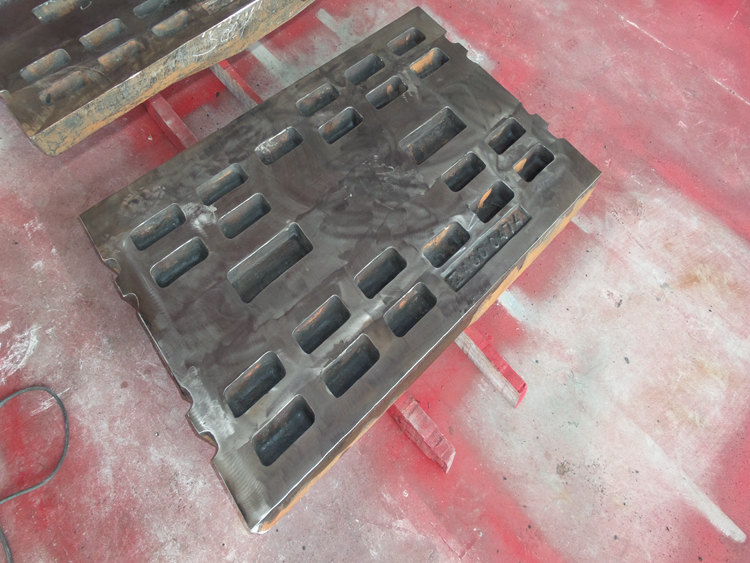

Aftermarket CJ613 Crusher Jaw Plates By Hunan JY Casting

CJ613 single-toggle jaw crusher is engineered for even the toughest applications thanks to its heavy-duty design. Characterized by an attention to detail in its design and manufacture, this machine is an excellent choice when you need high production and low total cost.

When it comes to CJ613 crusher jaw plates, Hunan JY Casting focuses on casting crusher wear parts over 20 years. Back to CJ613 jaw plates, Hunan JY Casting manufactures aftermarket replacement parts based on customers’ drawings and sample products. Our aftermarket parts 100% match the original wear parts; On the other hand, our engineers had developed some new materials wear parts to suit different working conditions.

Hunan JY Casting supplies the following material for CJ613 jaw plates:

  • Manganese steel, which includes Mn14, Mn18, and Mn22
  • TIC inserts+manganese steel
  • Modified manganese steel

Hunan JY Casting has the following patterns for CJ613 jaw plates:


Tooth Types CORRUGATED  SHARP TEETH  COARSE CORRUGATED HD ULTRA-THICK
Mn14 Fixed jaw plate JY-400.0447-001  JY-400.0963-001  JY-400.0422-001 JY-BG00372142-01
Swing jaw plate JY-400.0446-001 JY-400.0964-001 JY-400.0421-001 JY-400.0421-001
Mn18 Fixed jaw plate  JY-400.0447-002 400.0963-004  JY-400.0422-002 JY-BG00372142-02
Swing jaw plate  JY-400.0446-002 400.0964-004  JY-400.0421-002 JY-400.0421-002
Upper plate JY-10-214-351-000
 Lower plate  JY-10-214-352-000

About JY Casting

Hunan JY Casting is a dynamically growing company with many years of experience in the production and supply of Crusher wear parts, shredder wear parts, mill liners, apron feeder pans, and other manganese or alloy steel wear parts. We supply wear parts to USA, Canada, Europe, Australia, Africa, etc
