Project Details

Project Time: Sep 2021

Project Location: Mexico

Inquiry Products: 5 sets of TIC inserts jaw plates for Sandvik CJ412/JM1208 jaw crusher

Material: Mn18Cr2 + TIC

Item No Commodity and specifications Quantity Material Weight
1 Fixed jaw plate, JY-400.0433 5 Mn18Cr2 + TIC 1516 kg
2 Movable jaw plate, JY-400.0437 5 Mn18Cr2 + TIC 1618 kg
10 15,670 kg

Mr.Rogelio is a purchase manager from MEXPARTS, which serves the mining and construction field. Distributing Heavy Equipment spare parts, now they are looking for crusher wear parts distribution.

One of his customers use a Sandvik CJ412 jaw crusher to crush copper mine. Due to the high wear resistance of copper ore, the service life of the original parts did not meet their expectations. Therefore, they looked for more wear-resistant parts.

Based on working conditions, we design TIC inserts jaw plates for MEXPARTS.

CJ412 TIC Inserts Fixed Jaws Design

CJ412 TIC Inserts Fixed Jaws Design

  • Part Number: JY-400.0433
  • 336 pcs ∅12*80mm TIC rods
  • 256 pcs ∅20*80mm TIC rods
  • TIC rods weight: 56kg
CJ412 TIC Inserts Movable Jaws Design

CJ412 TIC Inserts Movable Jaws Design

  • Part Number: JY-400.0437
  • 336 pcs ∅12*80mm TIC rods
  • 256 pcs ∅20*80mm TIC rods
  • TIC rods weight: 56kg

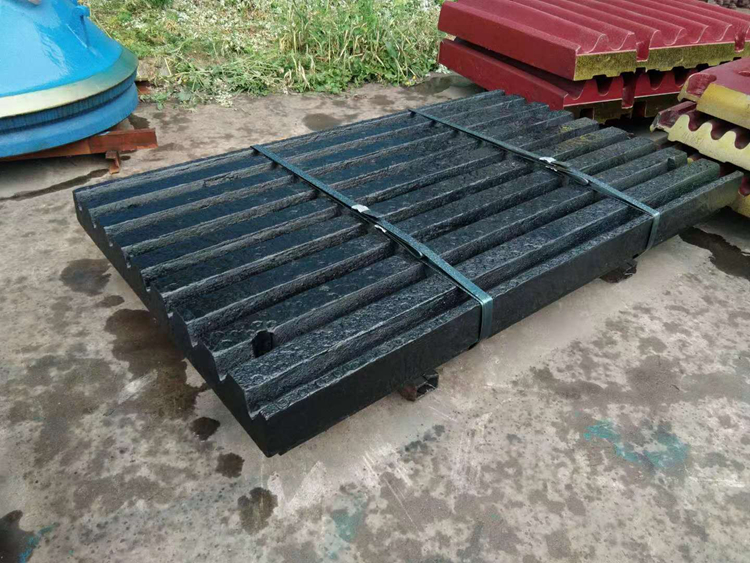

Finish Products

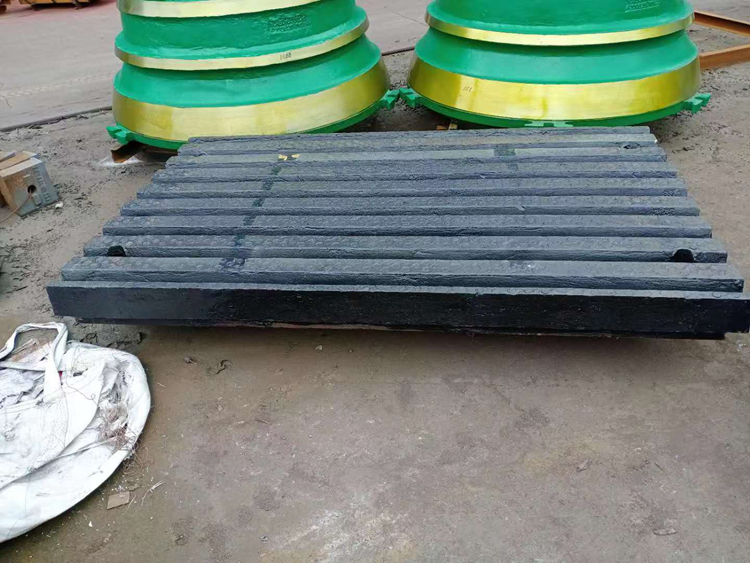

CJ412 TIC Inserts Movable Jaws
